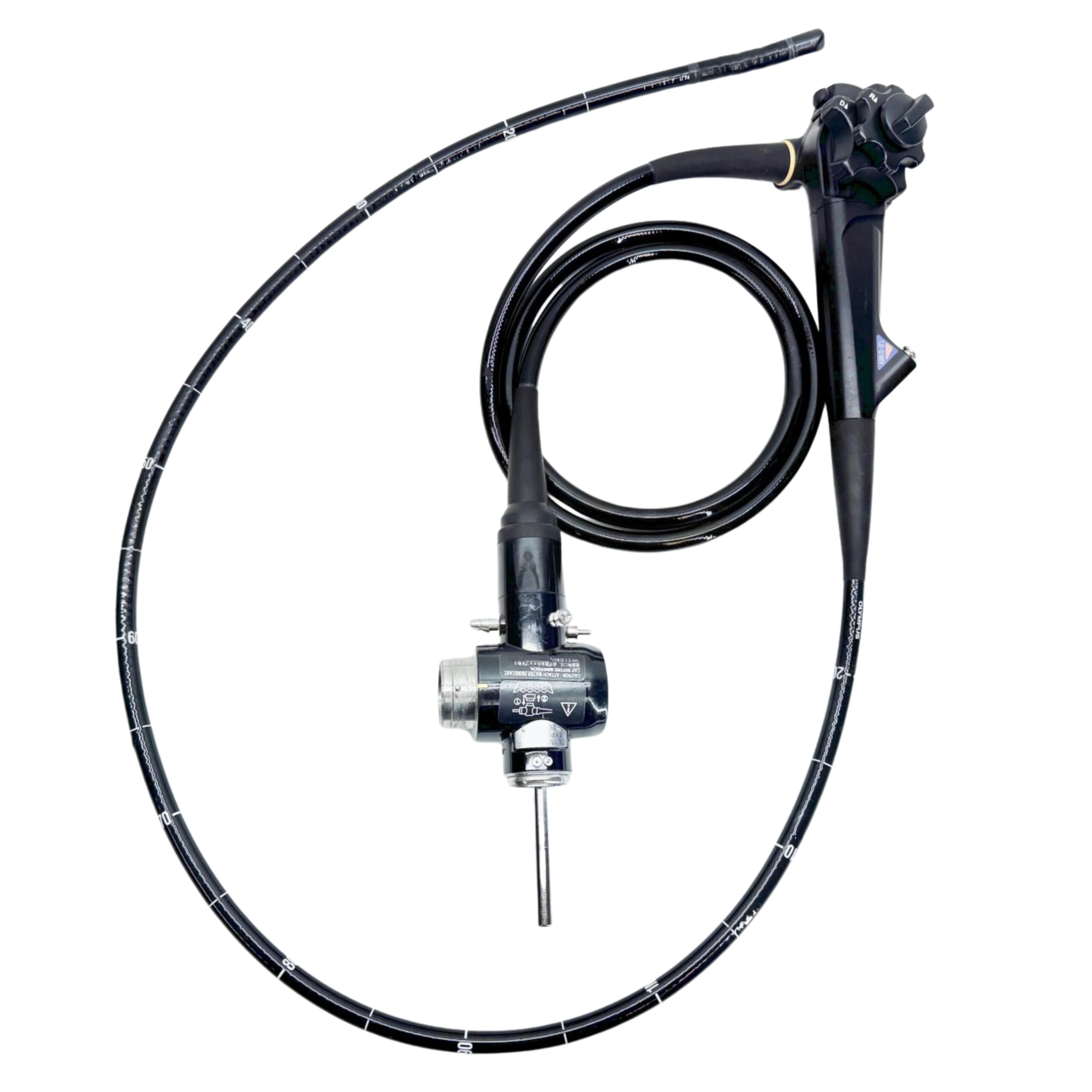

Olympus TJF-Q180V EVIS EXERA II Video Duodenoscope
The Olympus TJF-Q180V is an advanced therapeutic video duodenoscope from the trusted EVIS EXERA II platform, specifically engineered for complex ERCP (Endoscopic Retrograde Cholangiopancreatography) procedures. Combining high-definition imaging, advanced guidewire control, and superior maneuverability, the TJF-Q180V is designed to support efficient diagnostic and therapeutic GI interventions.
Featuring HDTV image quality, Narrow Band Imaging (NBI), and Olympus’ innovative dual guidewire locking mechanism, this duodenoscope enables physicians to achieve enhanced visualization and precise device control during demanding ERCP procedures.
Key Features & Benefits
HDTV High-Resolution Imaging
Produces exceptionally sharp and detailed endoscopic images for improved visualization during ERCP procedures.
Narrow Band Imaging (NBI)
Enhances visualization of mucosal and vascular structures for improved lesion observation and diagnostic accuracy.
Innovative Dual Guidewire Locking Mechanism
Supports fast and secure guidewire exchange with reliable locking of both 0.025-inch and 0.035-inch guidewires.
V-Groove Forceps Elevator Technology
Improves guidewire control and procedural efficiency during therapeutic interventions.
Wide 4.2 mm Instrument Channel
Accommodates a broad range of ERCP accessories and therapeutic devices.
Slim 11.3 mm Insertion Tube
Provides enhanced maneuverability and smoother insertion during procedures.
4-Way Angulation Control
Facilitates precise access to the papilla and improved procedural flexibility.
Scope Identification Memory Chip
Stores scope-specific information for improved device tracking and workflow management.
Technical Specifications
Model: TJF-Q180V
Series: Olympus EVIS EXERA II
Type: Therapeutic Video Duodenoscope
Application: ERCP Procedures
Field of View: 100°
Direction of View: Backward side viewing 5°
Depth of Field: 5–60 mm
Distal End Diameter: 13.7 mm
Insertion Tube Diameter: 11.3 mm
Working Length: 1240 mm (124 cm)
Instrument Channel Diameter: 4.2 mm
Angulation Range:
Up: 120°
Down: 90°
Right: 110°
Left: 90°
Compatibility: Olympus CV-180 / CV-190 systems
Applications
ERCP procedures
Biliary stone management
Pancreatic duct evaluation
GI therapeutic interventions
Endoscopic sphincterotomy
Gastroenterology diagnostics
Hospital and outpatient endoscopy procedures
Why Choose Olympus TJF-Q180V?
The TJF-Q180V is trusted by gastroenterologists worldwide for its combination of advanced ERCP functionality, high-definition imaging, secure guidewire control, and therapeutic versatility. Its innovative dual locking system and wide instrument channel make it an excellent solution for complex biliary and pancreatic procedures.
