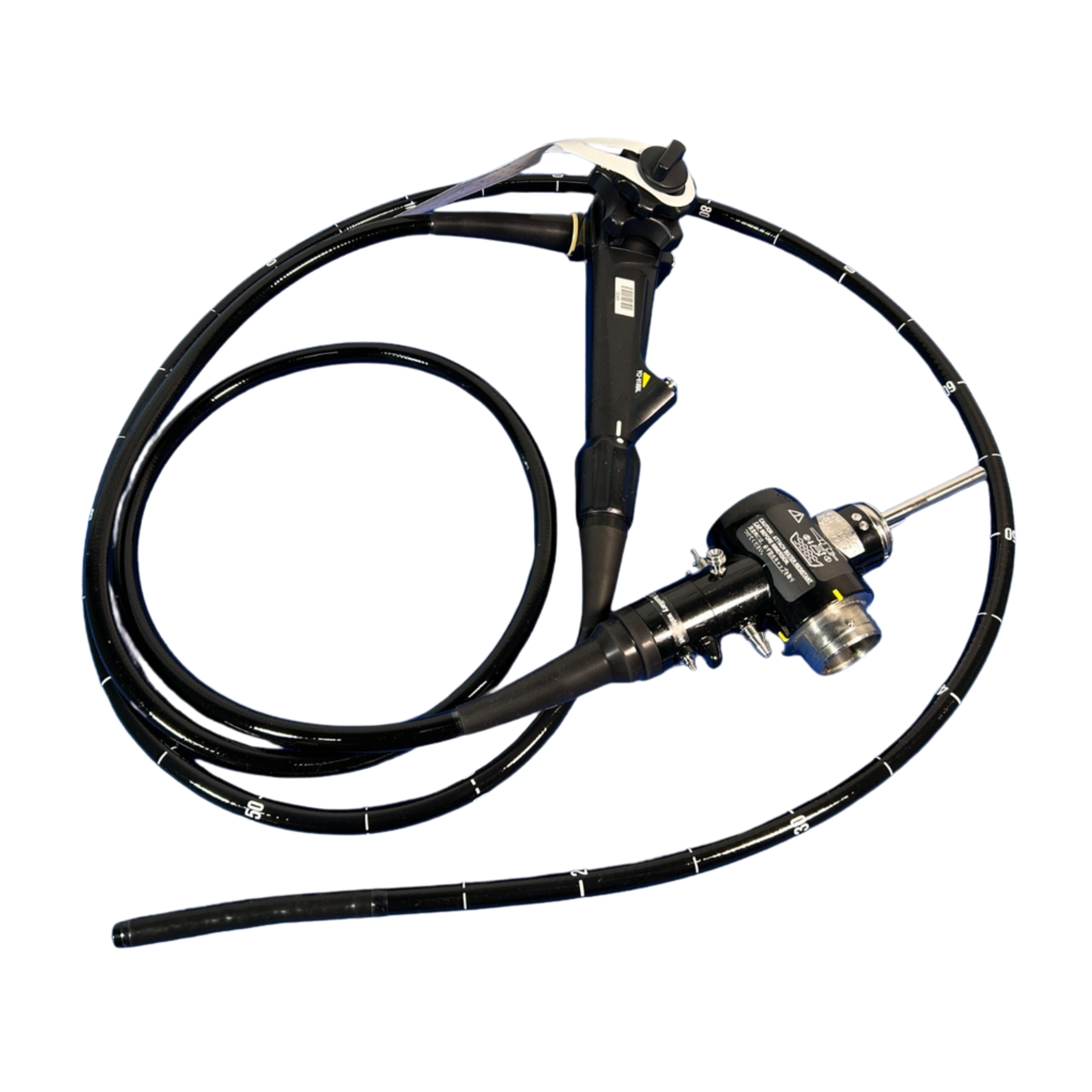

Olympus PCF-H180AL HDTV Pediatric Video Colonoscope with NBI Technology

Olympus PCF-H180AL HDTV Pediatric Video Colonoscope

The Olympus PCF-H180AL is a premium HDTV pediatric video colonoscope from the trusted EVIS EXERA II series, designed to provide exceptional image quality, improved maneuverability, and enhanced diagnostic performance during gastrointestinal procedures. Its slim insertion tube and advanced imaging capabilities make it ideal for pediatric and difficult colonoscopy cases.

Equipped with High-Definition HDTV imaging, Narrow Band Imaging (NBI), Close Focus technology, and innoflex™ Variable Stiffness, the PCF-H180AL enables physicians to achieve detailed mucosal observation while maintaining excellent insertion performance and patient comfort.

Key Features & Benefits

HDTV High-Resolution Imaging
Produces sharp and detailed endoscopic images for improved visualization and diagnosis.

Narrow Band Imaging (NBI)
Enhances visualization of mucosal morphology and vascular structures for advanced lesion detection.

Slim Pediatric Design
Features a narrow insertion tube for improved maneuverability and patient comfort during procedures.

Close Focus Function
Enables highly detailed close-up observation without loss of image resolution.

Innoflex™ Variable Stiffness Technology
Allows adjustment of insertion tube flexibility to match anatomical conditions and improve scope handling.

Auxiliary Water Jet Function
Helps clear mucus and debris for uninterrupted visualization during examinations.

Wide Angulation Range
Provides excellent access and visualization throughout the colon.

Technical Specifications

Model: PCF-H180AL

Series: Olympus EVIS EXERA II

Type: HDTV Pediatric Video Colonoscope

Working Length: 1680 mm (168 cm)

Insertion Tube Diameter: Approx. 11.3–11.8 mm

Instrument Channel Diameter: 3.2 mm

Field of View: 140°

Depth of Field: 2–100 mm

Angulation:

Up/Down: 180°

Right/Left: 160°

Compatibility: Olympus CV-180 / CV-190 processors

Applications

Pediatric colonoscopy

Gastrointestinal diagnostics

Polyp detection and screening

Mucosal inspection

Hospital and outpatient GI procedures

Advanced endoscopic examinations

Why Choose Olympus PCF-H180AL?

The PCF-H180AL is widely trusted for its combination of HD imaging, slim profile, advanced NBI visualization, and superior maneuverability. It is an excellent solution for physicians seeking reliable performance in pediatric and complex colonoscopy procedures.
