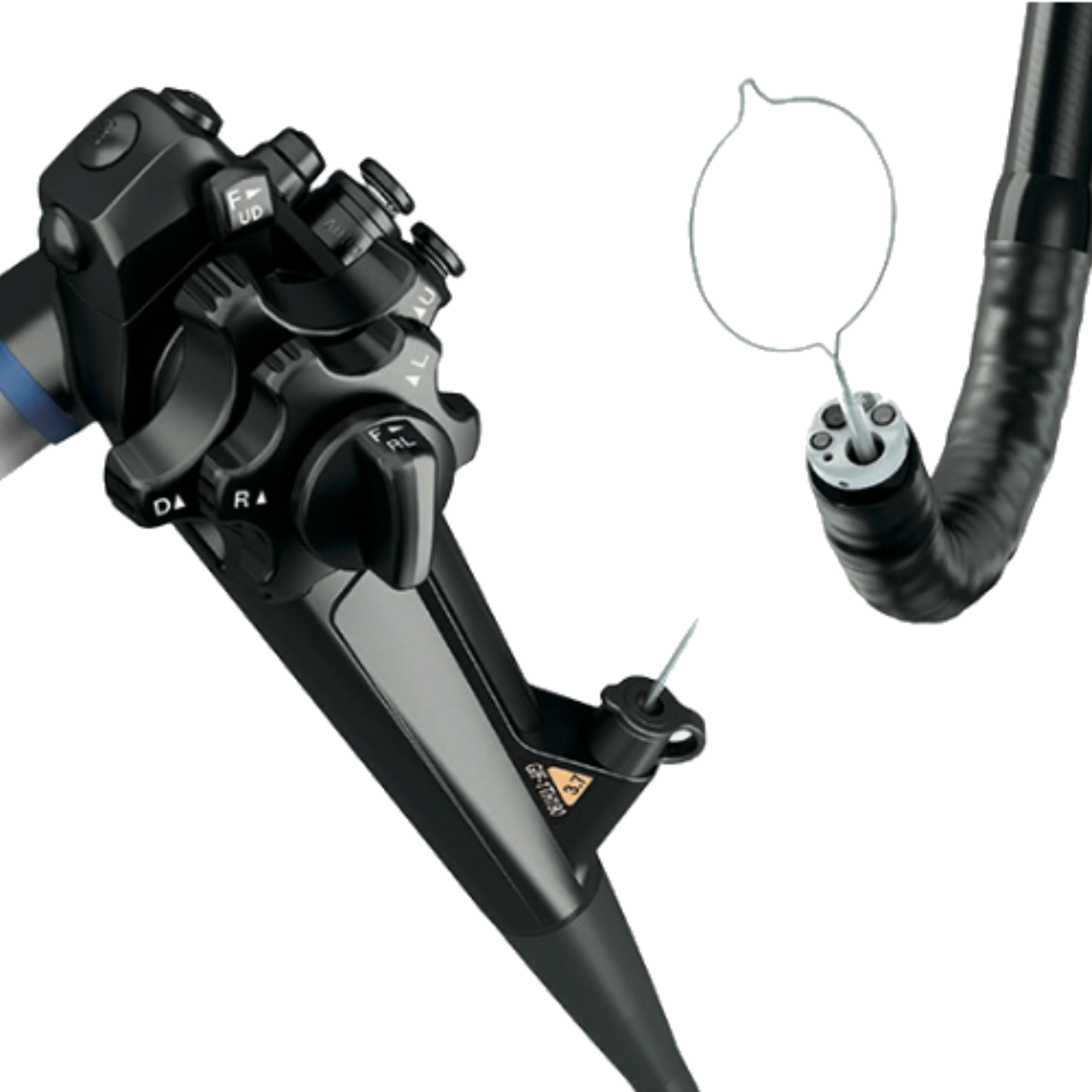

Olympus GIF-1TH190 EVIS EXERA III Therapeutic HDTV Gastroscope with NBI

Olympus GIF-1TH190 EVIS EXERA III Therapeutic HDTV Gastroscope

The Olympus GIF-1TH190 is a high-performance therapeutic HDTV video gastroscope from the advanced EVIS EXERA III platform, designed to deliver outstanding visualization, therapeutic capability, and procedural efficiency for upper gastrointestinal endoscopy. Featuring a slim ergonomic design with a large 3.7 mm instrument channel, the GIF-1TH190 combines excellent maneuverability with the ability to support a wide range of therapeutic devices and procedures.

Engineered for modern gastroenterology practices, the GIF-1TH190 incorporates High-Definition imaging, Narrow Band Imaging (NBI), Close Focus observation, and an integrated water jet system to enhance mucosal visualization and improve diagnostic accuracy during complex GI procedures.

Key Features & Benefits

HDTV High-Definition Imaging
Delivers bright, sharp, and detailed visualization of the gastrointestinal mucosa for enhanced clinical observation.

Narrow Band Imaging (NBI)
Improves visualization of vascular patterns and mucosal structures, supporting enhanced lesion detection and characterization.

Large 3.7 mm Instrument Channel
Supports a wide range of therapeutic accessories and endoscopic devices while maintaining a slim insertion profile.

Slim Therapeutic Design
Features a 10.0 mm distal end diameter for improved insertion while preserving therapeutic capability.

Close Focus Observation
Enables clear mucosal observation as close as 2 mm without electronic magnification.

Integrated Water Jet Function
Helps maintain a clear visual field during diagnostic and therapeutic procedures.

Waterproof One-Touch Connector
Simplifies setup and reduces maintenance risks associated with water-resistant caps.

Technical Specifications

Model: GIF-1TH190

Series: Olympus EVIS EXERA III

Type: Therapeutic HDTV Video Gastroscope

Field of View: 140°

Depth of Field: 2–100 mm

Distal End Diameter: 10.0 mm

Insertion Tube Diameter: 10.9 mm

Working Length: 1030 mm

Instrument Channel Diameter: 3.7 mm

Angulation Range:

Up: 210°

Down: 90°

Right/Left: 100°

Compatibility: Olympus CV-190 / CLV-190 systems

Applications

Upper GI endoscopy

Therapeutic gastrointestinal procedures

Barrett’s esophagus evaluation

Lesion detection and biopsy

Hemostasis procedures

Advanced gastroenterology interventions

Hospital and outpatient GI procedures

Why Choose Olympus GIF-1TH190?

The GIF-1TH190 is trusted by gastroenterology specialists for its combination of advanced HDTV imaging, therapeutic versatility, slim insertion profile, and enhanced NBI visualization. Its large instrument channel and ergonomic design make it an ideal solution for both diagnostic and interventional upper GI procedures.
