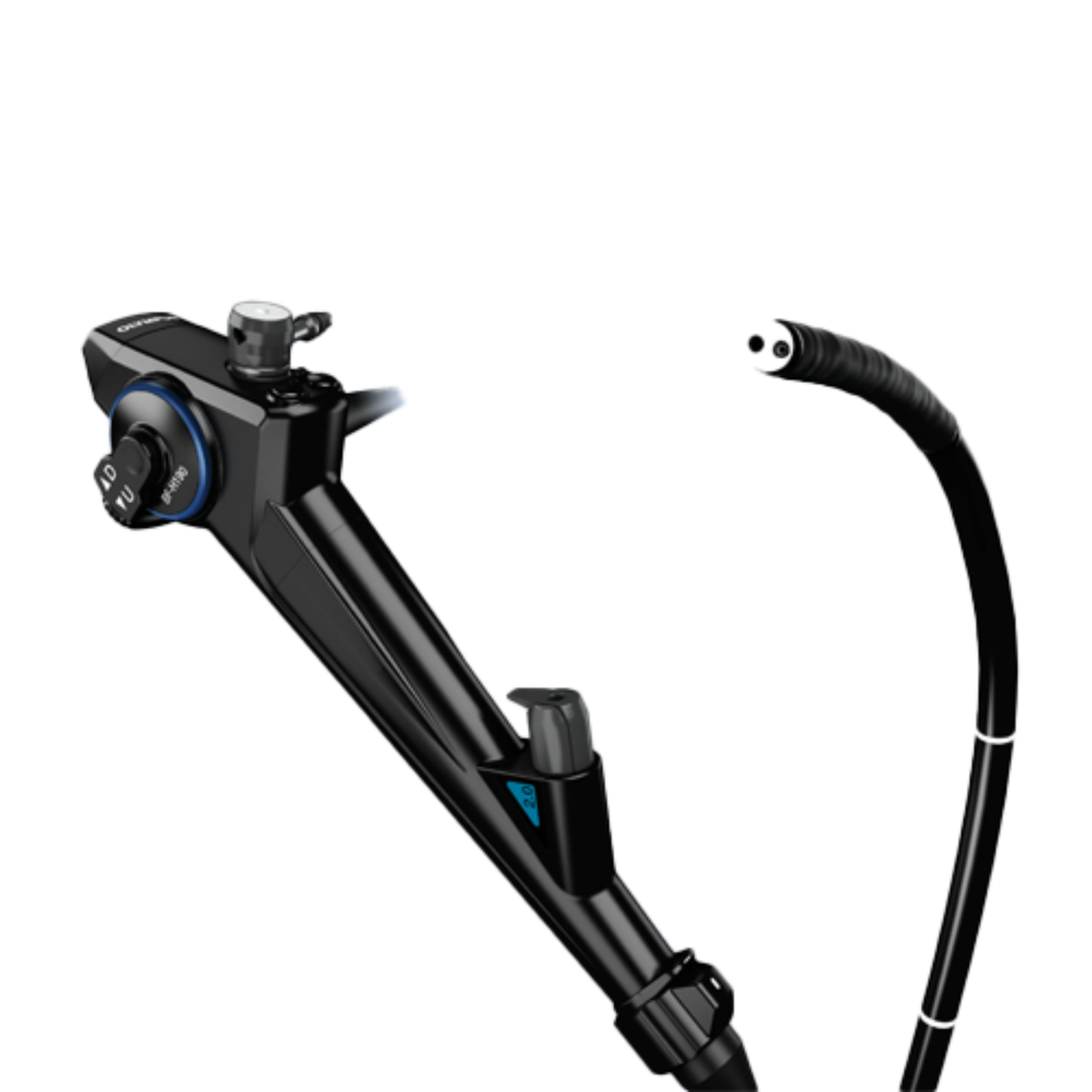

Olympus BF-H190 EVIS EXERA III High-Definition Video Bronchoscope with NBI

Olympus BF-H190 EVIS EXERA III High-Definition Video Bronchoscope

The Olympus BF-H190 is a premium high-definition video bronchoscope from the advanced EVIS EXERA III platform, designed to deliver superior image quality, improved maneuverability, and enhanced diagnostic performance in pulmonary procedures. Built for modern bronchoscopy practice, the BF-H190 combines HD imaging technology, Narrow Band Imaging (NBI), and excellent suction capability for precise airway evaluation.

This bronchoscope is widely used in hospitals and pulmonary clinics for both diagnostic and therapeutic respiratory procedures, offering clinicians exceptional visualization of bronchial anatomy.

Key Features & Benefits

High-Definition Imaging System
Provides bright, sharp, and detailed visualization of airway structures

Narrow Band Imaging (NBI)
Enhances mucosal and vascular pattern visualization for improved lesion detection

Enhanced Suction Capability
Supports effective secretion management during procedures

Slim Flexible Insertion Tube
Improves patient comfort and allows easier navigation through bronchial pathways

Excellent Maneuverability
Smooth angulation control for precise navigation in complex airway anatomy

Ergonomic Control Design
Reduces operator fatigue during long procedures

Compatible with EVIS EXERA III Systems
Designed for use with Olympus CV-190 and CLV-190 platforms

Technical Specifications

Model: BF-H190

Series: Olympus EVIS EXERA III

Type: High-Definition Video Bronchoscope

Application: Pulmonary / Bronchoscopy

Imaging System: HD video imaging

Field of View: Approx. 110°

Depth of Field: Approx. 2–50 mm

Insertion Tube Diameter: Approx. 5.9 mm

Distal End Diameter: Approx. 5.9 mm

Working Length: Approx. 600 mm

Instrument Channel Diameter: Approx. 2.0 mm

Angulation Range:

Up: 180°

Down: 130°

Compatibility: Olympus EVIS EXERA III (CV-190 / CLV-190)

Applications

Diagnostic bronchoscopy

Pulmonary lesion assessment

Airway inspection

Bronchial biopsies

Secretion management

Lung disease evaluation

Hospital and outpatient pulmonary procedures

Why Choose Olympus BF-H190?

The BF-H190 is trusted by pulmonologists for its combination of high-definition imaging, NBI enhancement, strong suction performance, and improved maneuverability. It is an excellent solution for both routine and advanced bronchoscopy procedures requiring precise airway visualization.
